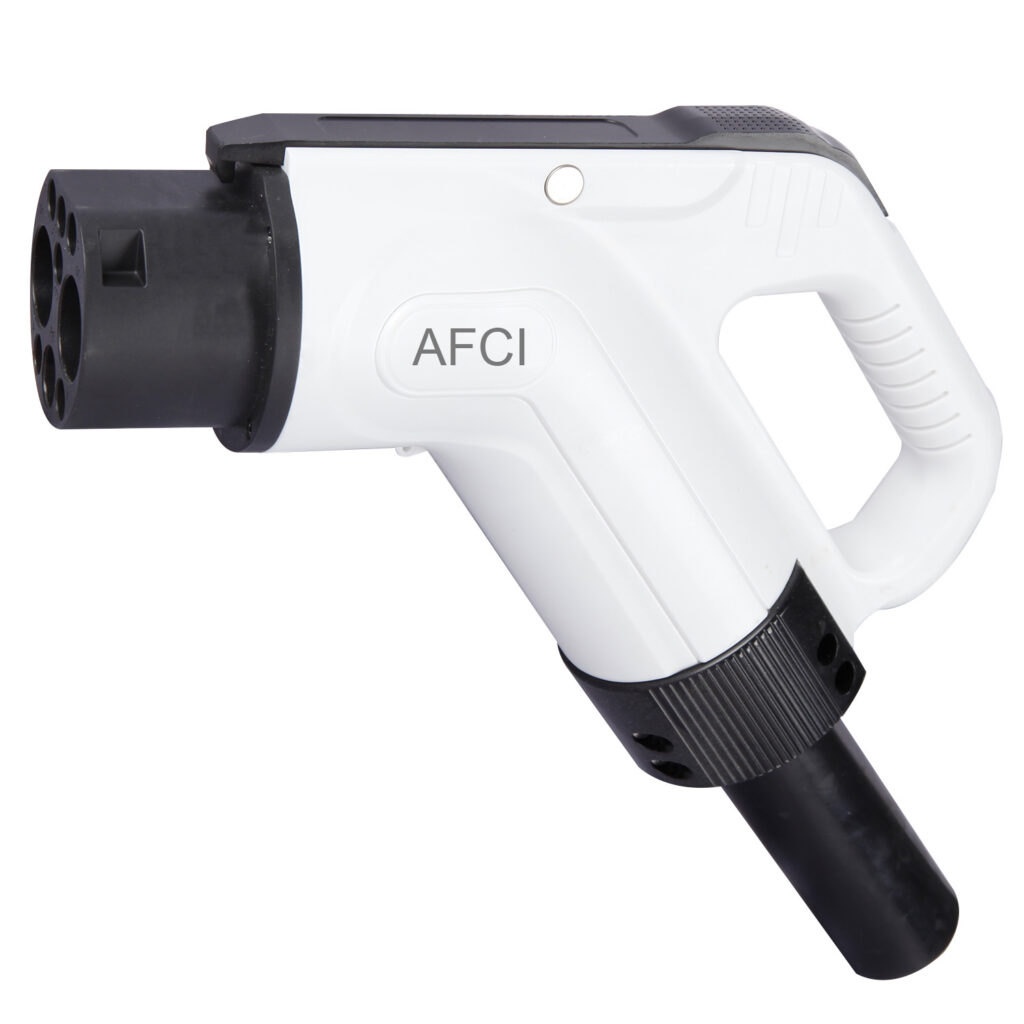

The Guobiao standard GB/T 20234 for AC / DC charging within China. And now it is also easy to find in the Asia market, especially the countries near China.
| Rated Current | 80A / 125A / 200A /250A | Insulation Resistance | ＞2000MΩ (DC1000V) |
|---|---|---|---|
| Rated Voltage | 750V / 1000V DC | Contact Resistance | ＞ 0.5mΩ Max |
| Terminal Temperature Rise | ＜ 50K | Withstand Voltage | 2000V |
| Mechanical Life | ＞ 10000 times | Coupled Force | 70N ＜ F ＜ 140N |
|---|---|---|---|
| Impact of External Force | 1M drop and 2T run over | Operating Temperature | -30 ℃ – ﹢ 50 ℃ |
| Case Materials | Thermoplastic | Terminal | Copper alloy,silver plating |
|---|
| IP Rating | IP54 | Standards | GB/T 20234 |
|---|---|---|---|
| Flame Retardant Grade | UL94 V-0 | Certifications | / |
| Model | Rated Current | Cable Specifications | Cable Material |
|---|---|---|---|
| SK-SAE-DCP-080A | 60A / 80A | 2*16mm²+16mm²+2*4mm²+2P(2×0.75)+7×0.75mm² | / |
| SK-SAE-DCP-125A | 125A | 2*35mm²+25mm²+2*4mm²+2P(2×0.75)+7×0.75mm² | / |
| SK-SAE-DCP-150A | 150A | 2*70mm²+25mm²+2*4mm²+2P(2×0.75)+7×0.75mm² | / |
| SK-SAE-DCP-200A | 200A | 2*80mm²+25mm²+2*4mm²+2P(2×0.75)+7×0.75mm² | / |
