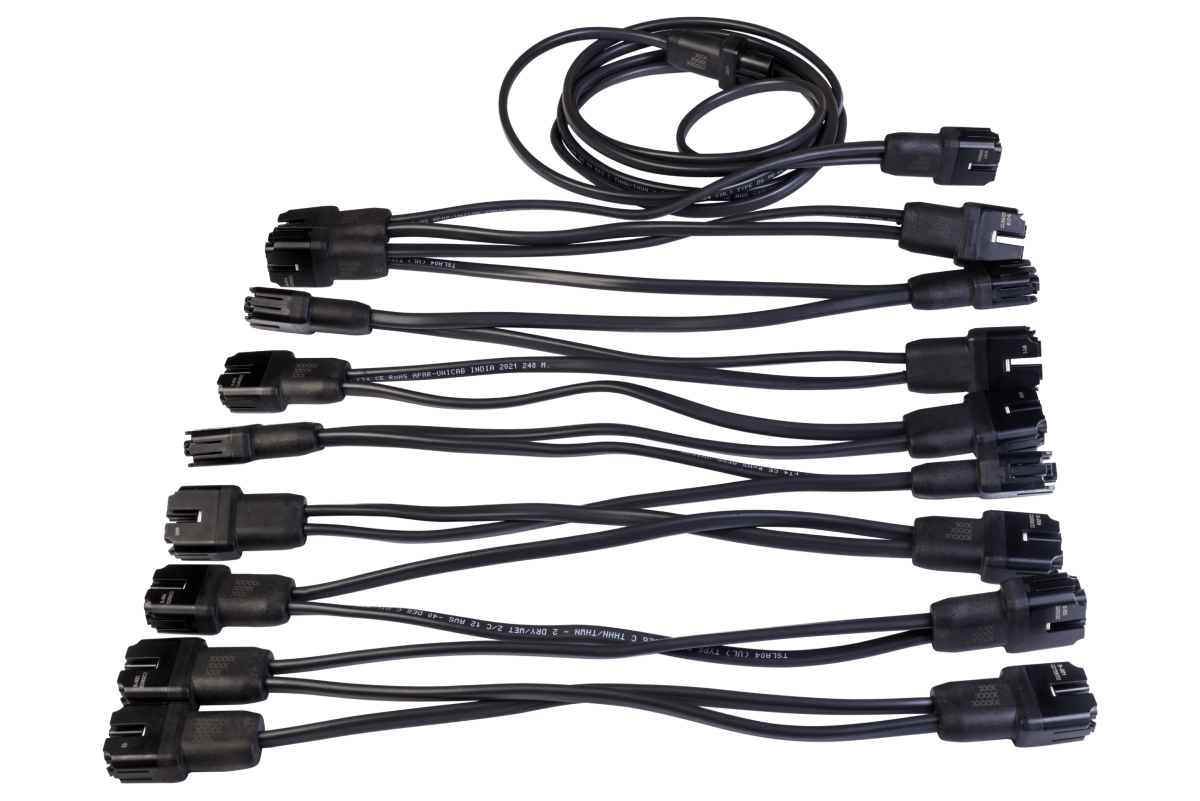

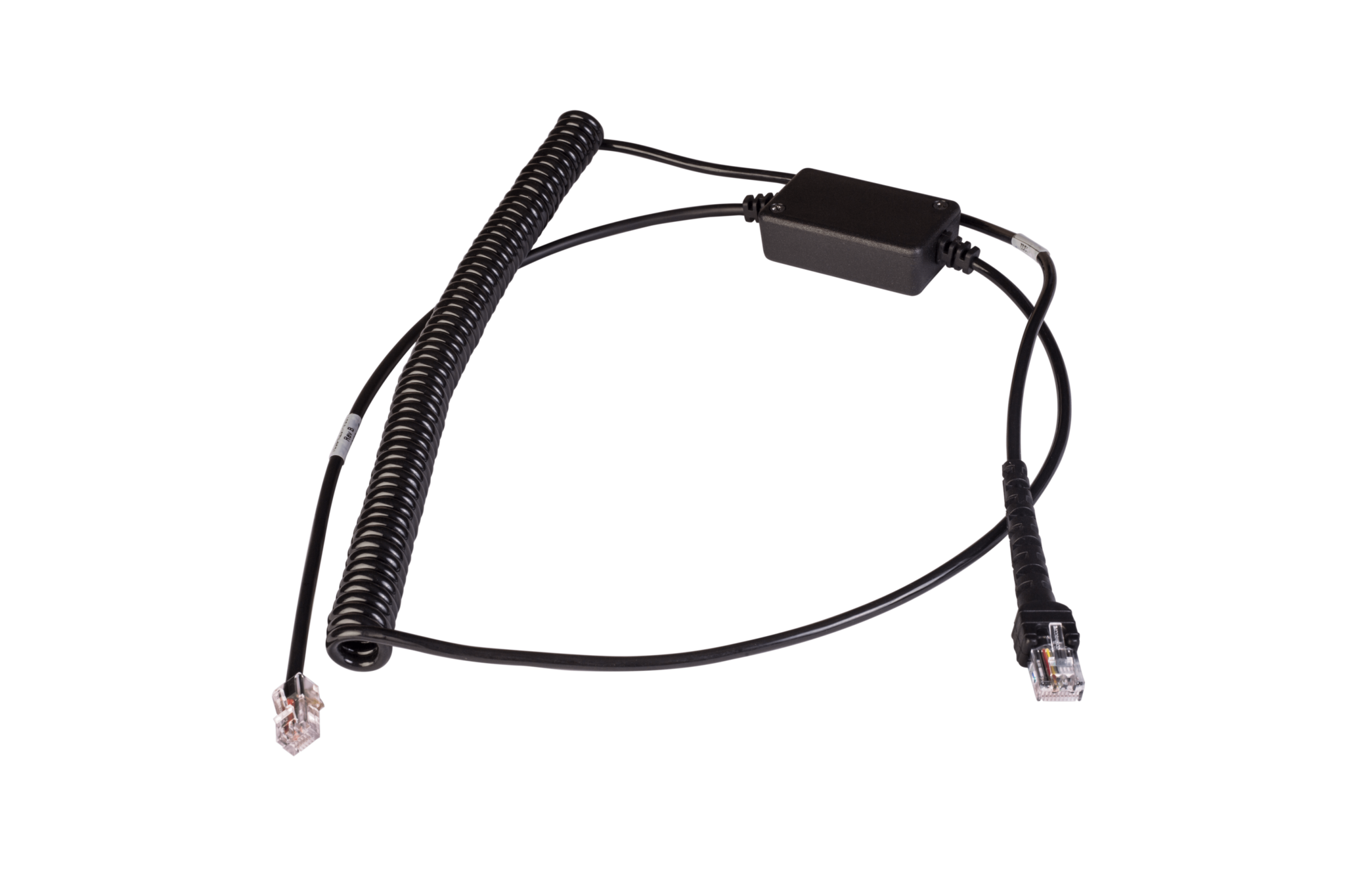

Overmolded Cable Assemblies

Amphenol FCI designs and manufactures custom overmolded cable assemblies in multiple circuit sizes and cable lengths, providing rugged strain relief at the interface between the connector and the jacketed cable.

MOST COMMON RESIN MATERIAL USED:

    Soft Resins: used at connector/cable interface.

  • TPE : Low halogen overmold resin, superior cosmetic appearance, temperature range (max.) — 125˚C
  • PVC: Common overmold resin, temperature range (max.) — 105˚C
  • Hard Resins: used for grommets at chassis interfaces or locking interfaces.
  • Nylon: Phthalate free overmold resin, temperature range (max.) — 170˚C
  • PBT: Low halogen overmold resin, temperature range (max.) — 220˚C
